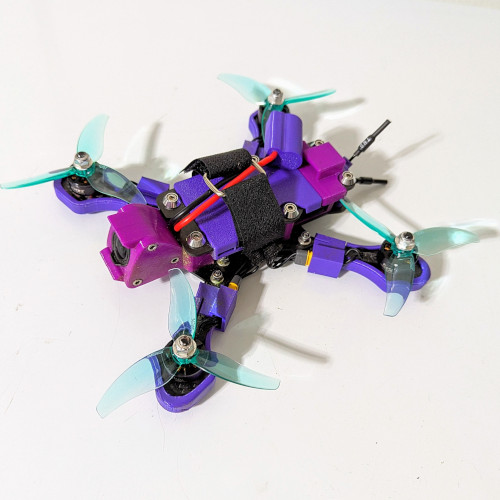

Stace Invader FPV Frame

Purchase

• Buy it on CNC Drones
• Buy it on Armattan Productions

Frame Project

• Fusion 360 Project

Frame DXF Files

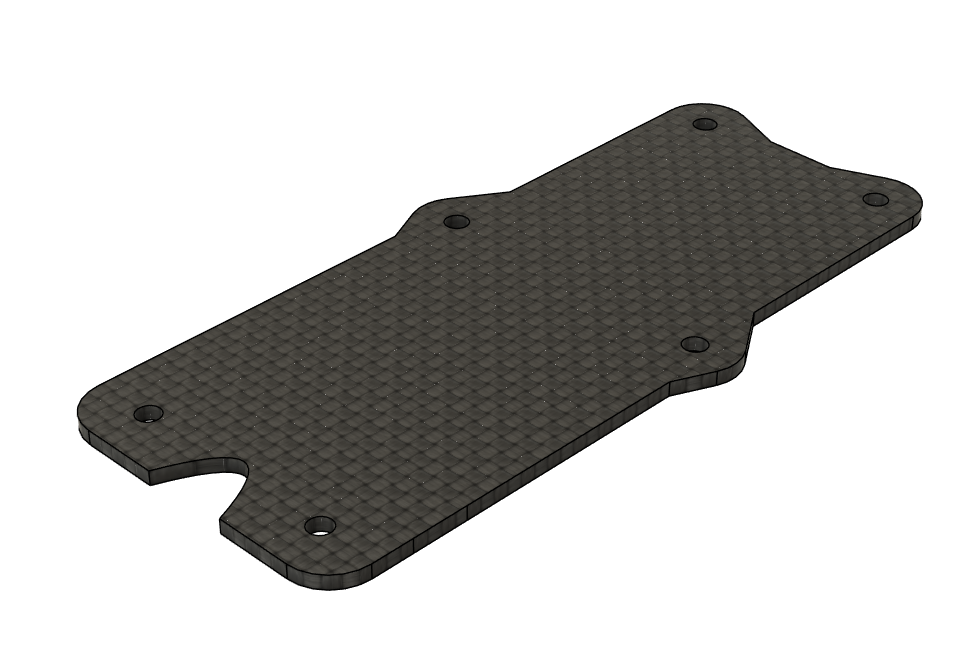

• Top Plate (2mm) x 1

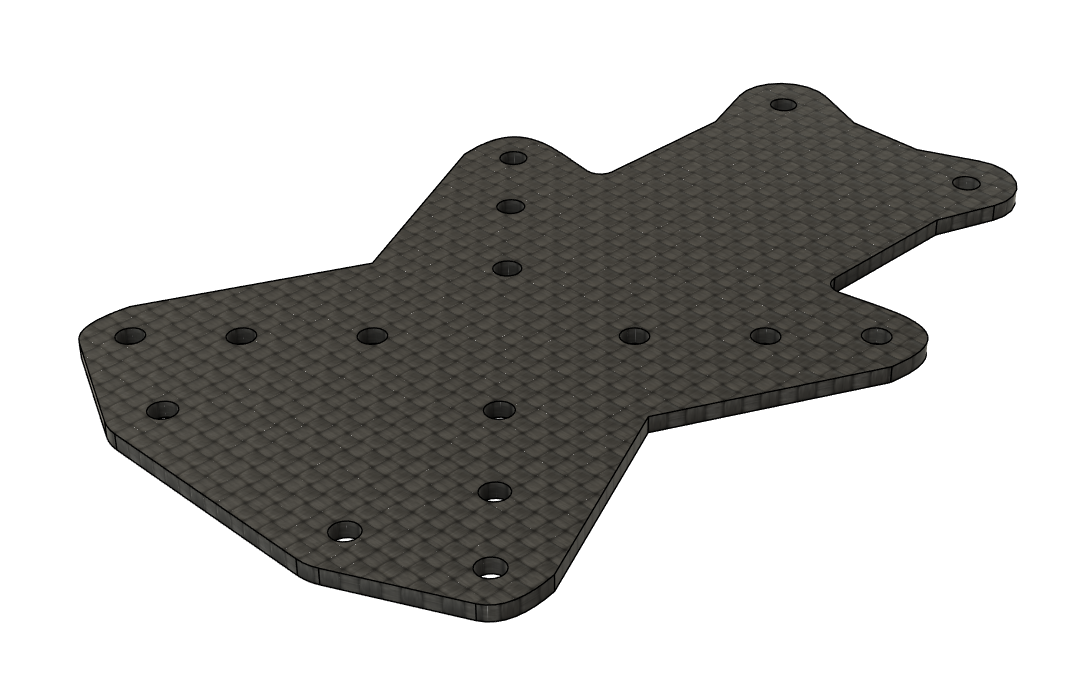

• Bottom Plate (2mm) x 1

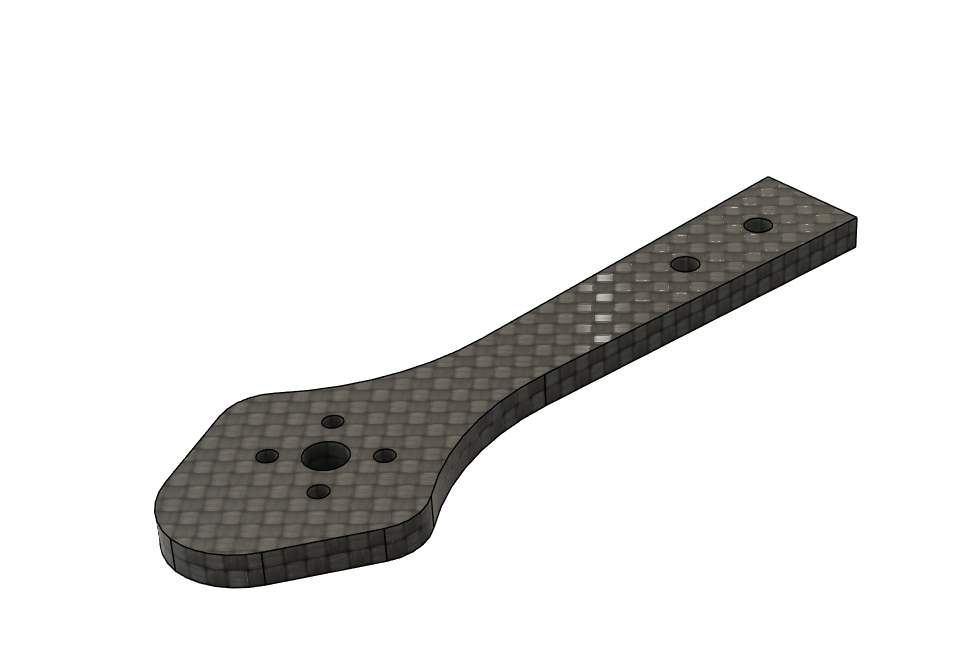

• Arm (4mm) x 4

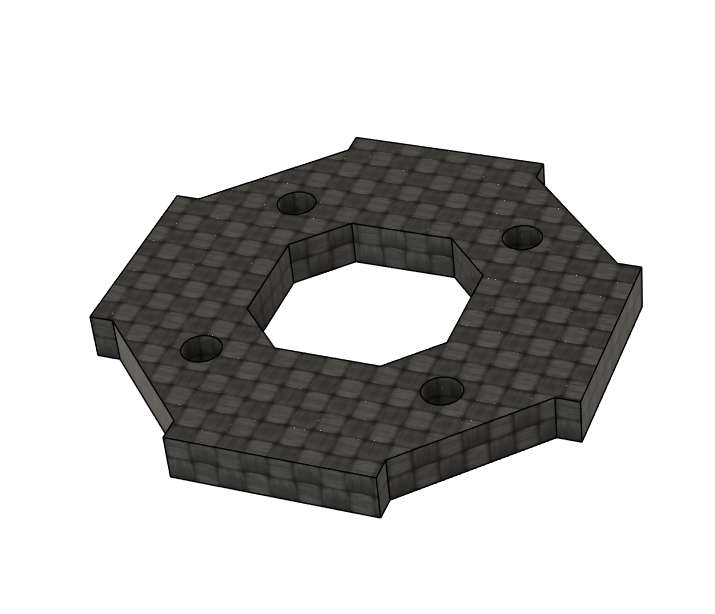

• Arm Brace (4mm) x 1

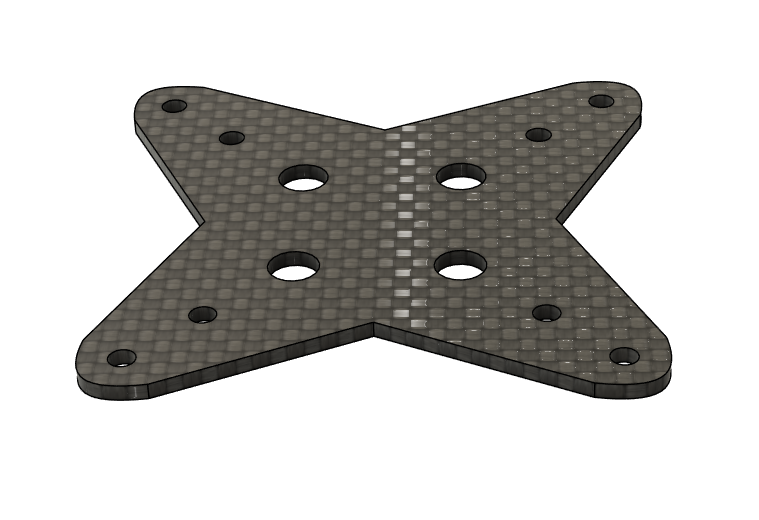

• Sandwich Plate (2mm) x 1

Hardware

• M3 Screw 14mm x 8
• M3 Screw 8mm x 14
• M3 Screw 4mm x 6
• M2 Screw 6mm x 16
• M3 Nylock Nut x 6
• M3 Cone Cup Countersunk Washer x 18
• M3 Knurled Standoff 20mm x 9

3D Prints

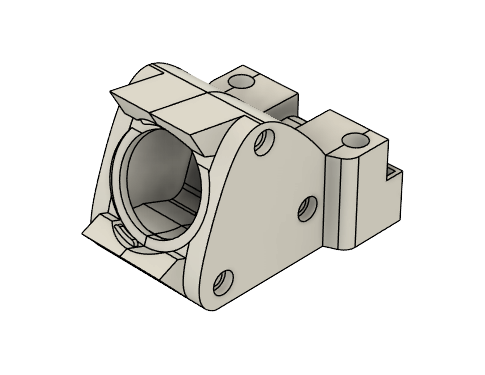

• DJI O4 Camera Pod

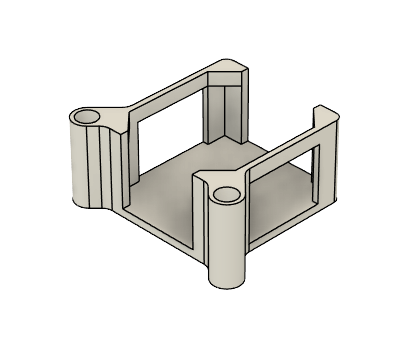

• DJI O4 Air Unit Pod
• DJI O4 Dual Antenna Mount

• DJI O3 Camera Pod
• DJI O3 Air Unit Pod
• DJI O3 Dual Whip Antenna Mount

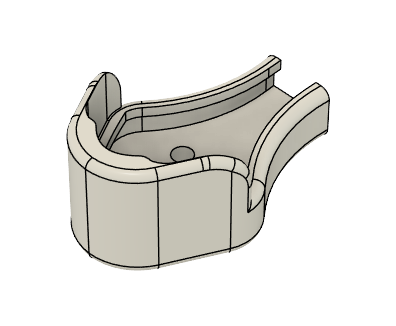

• Arm Bumper w/ Landing Skid
• MR30 Arm Mount

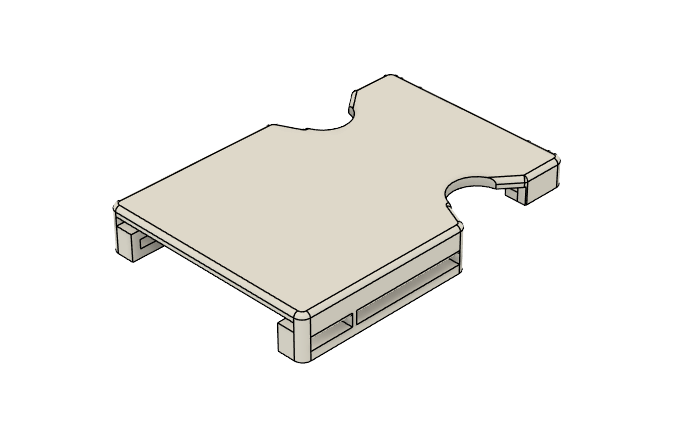

• Battery Pad

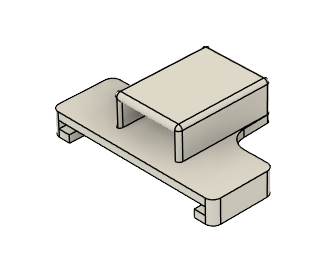

• Balance Lead Protector
